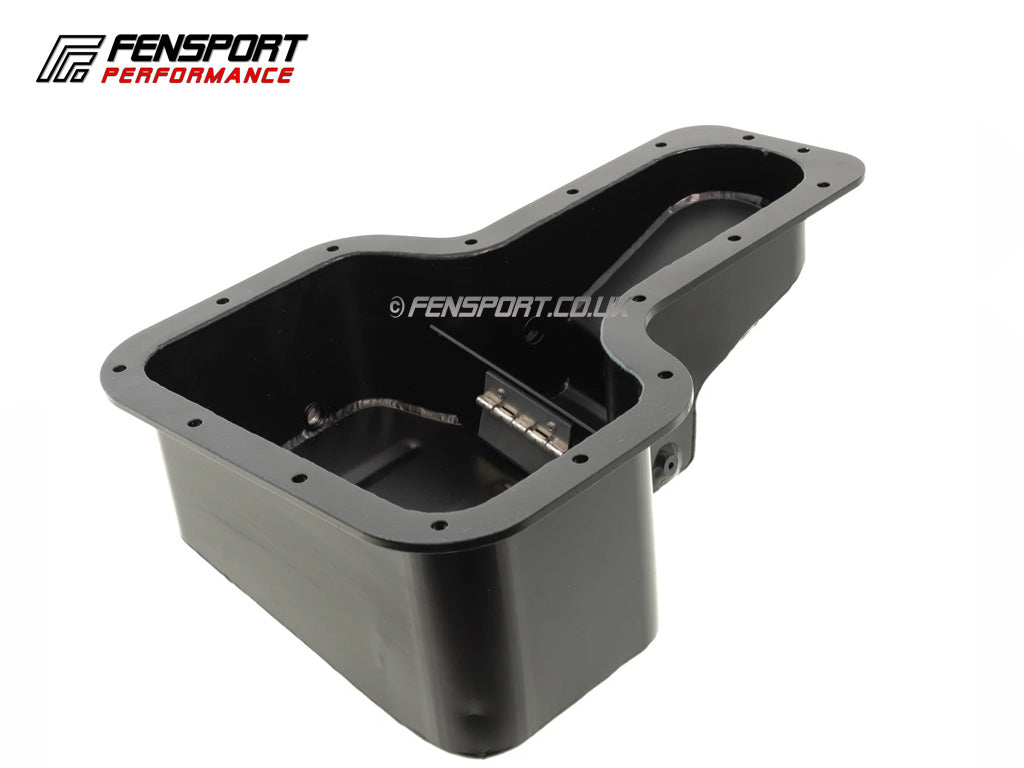

1ZZGE / 2ZZGE Baffled sump pan:

Note: May require modification to subframe crossmember on some applications.

Allows for an extra 1ltr of oil capacity.

This Baffled Sump conforms to the exact shape of the original sump to engine block mating faces and as such is easy to install with basic tools.

Expertly double TIG welded inside and out, then pressure tested for potential leaks.

The main reason for a baffled sump is to keep the oil as close to the pick up at all times even under heavy braking or cornering.

It is also important to allow the oil to drain back from the engine block to the pick-up area as quickly as possible; with strategically placed beads and flow gates.

The beads are there to assist when it comes to draining the oil so every last drop can be drained before re-fill. We have found some sumps still hold up to ¼ of a litre due to the location of the holes in the baffle plates.

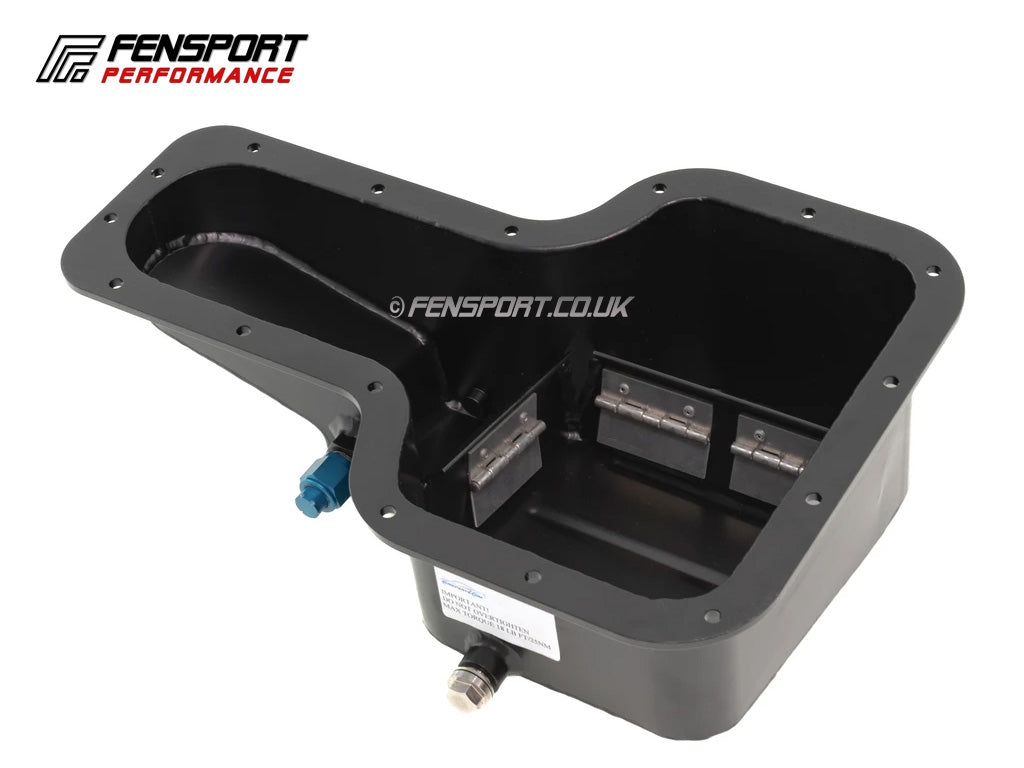

The flow gates are designed and manufactured for this application and open to exactly 60 degrees which have found to be the ideal opening gap to allow oil to drain back to the pick-up area yet close very quickly when under cornering or braking forces.

The top of the baffle mounts are also angled strategically to stop oil splashing over under high gravitational forces too.

This is the lightest available at only 1.6kg

The sump itself is completely powder coated; this help with corrosion that occurs on untreated aluminium.

supplied with the world’s strongest Neodymium Magnetic sump drain plug with a High temperature Dowty washer.

Neodymium is the strongest magnet available and we use the highest grade nickel coated type which will take temperatures of over 180 degrees C.

The use of this strong magnet will help collect any stray metal debris that is naturally occurring within your engine due to time and wear. This will stick to the Neodymium magnet rather than being sucked in by the oil pump and re-circulated.

Other innovative advantages include a centred aluminium plug on the rear of the baffled sump to allow the use of a temperature sender or similar.

With specifically marked centre so you can use any size thread the sensor may require (up to 18mm).

The sump is supplied with the very best gasket sealant that is resistant to all known oils and gases that are present within today’s high powered engines.

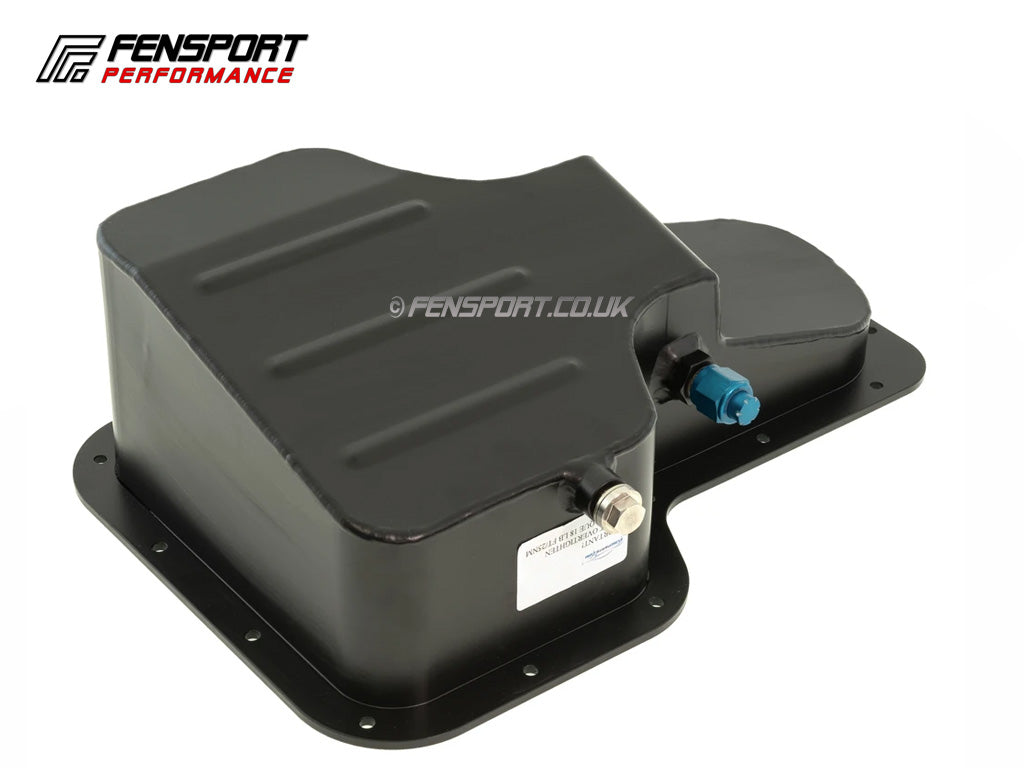

Also we have a dash 8 JIC fitting on the front of the sump. This is of great use should you ever want any form of drain back to the sump, for example a Turbo return pipe or even breather catch tank lines.

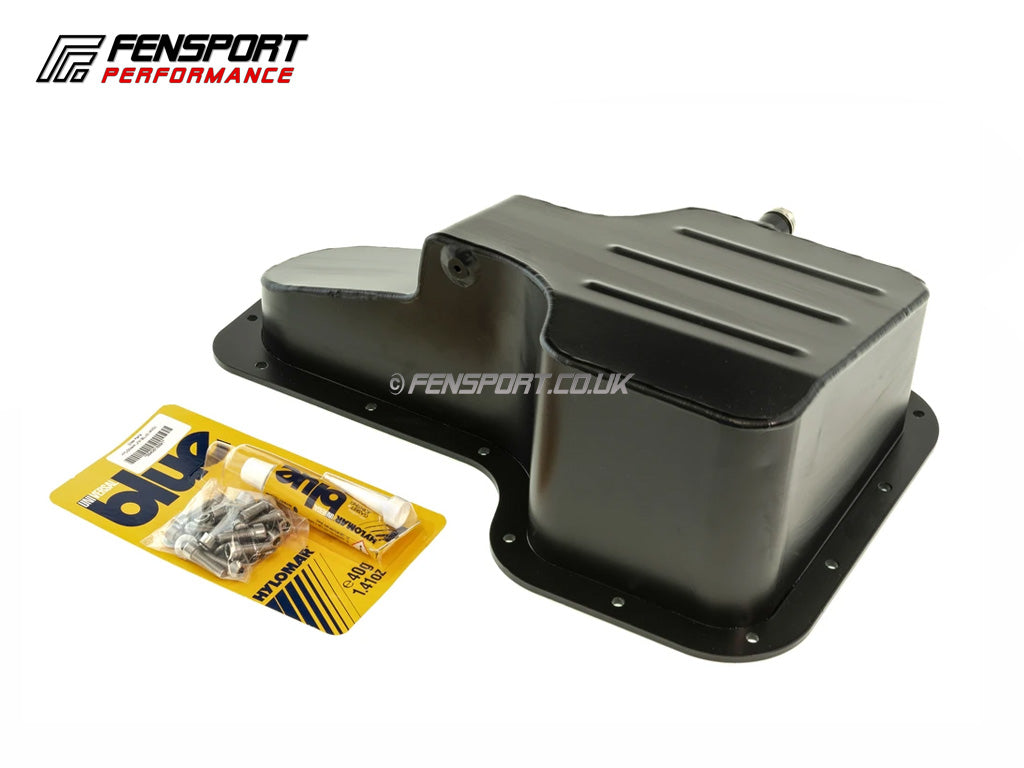

Supplied with 16 new mounting bolts and washers.

FREE MAGNETIC DRAIN PLUG & HYLOMAR GASKET SEALANT WORTH £20.
